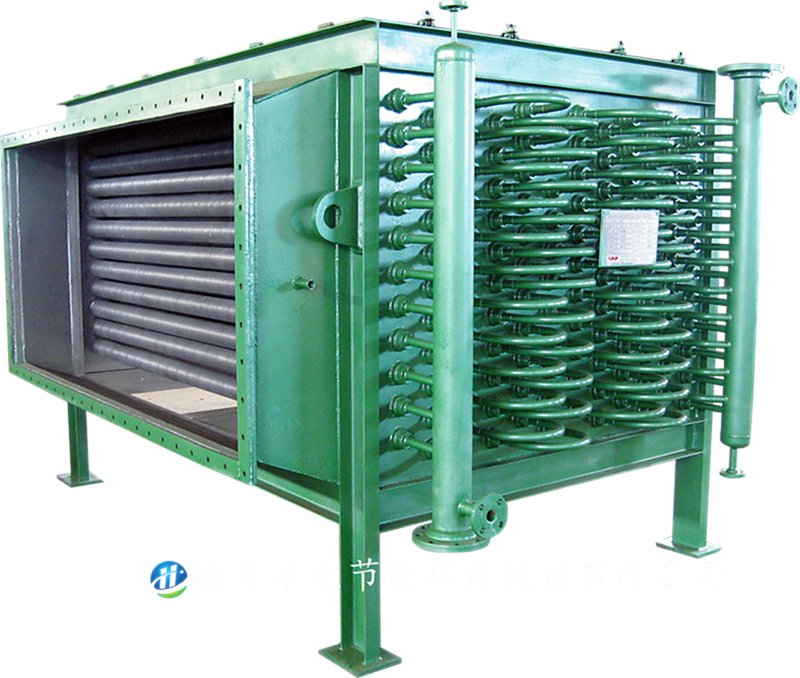

Equipment Name: Radial Heat Pipe Economizer
Type: Horizontal (flue gas flow direction: horizontal or vertical)
Materials: Heat exchange tubes—20# boiler steel pipe; structural steel and plates—Q235B
Feedwater: Softened water or demineralized water
Flue Gas Conditions: Corrosive gases from industrial exhaust sources such as organic heat carrier furnaces, boilers, kilns, calcination furnaces, sulfur焚烧炉s, smelting furnaces, etc.
Flue Gas Inlet Temperature: Below 300°C
Exhaust Gas Temperature: Approximately 130°C–200°C (or as required)
Feedwater Pressure: 0.6 MPa, 1.6 MPa, 4.0 MPa, etc.
Outlet Water Temperature: 80°C, 100°C, 120°C (below saturation temperature)
Features:

• Optimized overall design of heat transfer surfaces.

• Wider temperature adaptation range.
